主要應用

高能二管泵浦，全固態(tài)，　Q-SWITCHEDLASER

高能二管泵浦固體，　q開關激光在532 nm的特性

　單脈沖能量高、短脈沖，時間和峰值功率高,

　廣泛用于PIV、生活,庫,icp，科學研究、激光加工、軍事、等等。

產(chǎn)品特點

用于透明固體物質LIBS光譜檢測的激光器。具有窄脈寬、高單脈沖能量等特點。

窄脈寬、高能量，可以有效擊穿各類氣體，適用于氣體及液體樣品LIBS光譜檢測

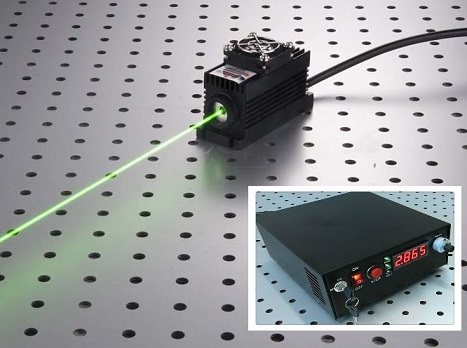

532nm LIBS(2~20mJ0)激光器

NBET-532-Q/2~20mJ

HIGH ENERGY DIODE PUMPED ALL-SOLID-STATE Q-SWITCHEDLASER

High energy diode pumped all solid state Q-switched laser at 532nm has the

features of high single pulse energy，short pulse duration，and high peak power，

which is widely used in PIV, LIF, LIBS, ICP-MS scientific research, laser processing, military, and so on.

技術參數(shù)

avelength (nm)                           532±1

Operating mode                           Electro-optics Q-switched

Single pulse energy (mJ)                     2      5     10    15    20

Rep. rate (Hz)                             1000    1~100 (adjustable)

Energy stability

Beam divergence, full angle (mrad)  ~2

Beam diameter (mm)                     ~1.5 ~2 ~2.5 ~3 ~4

Warm-up time (minutes)<15

Beam height from base plate (mm) 55

Cooled method    Water Cooled

Operating temperature (℃) 15~35

Power supply (220/110VAC) PSU-NBET-Q-II(3U) @1KHz , PSU-NBET-Q-I @100Hz

Expected lifetime (pulses)109

Warranty 1 year

Available options Other repetition rates:100~1000Hz; Jitter:~1ns(Sdev); Accessories
