經濟型虛擬光功率計

經濟虛擬光功率計
兼容光電二管探測器和18P系列熱電堆探測器
小巧的外形理想選擇

虛擬功率計易于使用且足夠直觀，在幾分鐘內即可掌握。功率計內包括一根USB電纜，用于連接您的PC 或筆記本電腦，并為本機提供電源。

軟件的內置功能包括一個完整的統計軟件包，可以讓您在線形圖和直方圖中進行選擇。使用同一塊屏幕，用戶可以設置數據采樣參數。能夠輕易從測量干擾中恢復。例如，可以取消統計緩沖區內的后一個值或后一個時間點，使您無需停止工作即可繼續使用。同樣提供保存數據、保存統計結果或保存兩者等諸多選項。

測量?jī)x裝配有DB15 輸入連接器，實現高功率探測器。

Power Range with 818P Series Detectors	1 mW to 10 kW
Analog Output	0-2 V full scale, mono audio 1/8" jack
Accuracy ()	±0.5 % Full Scale
Dimensions ()	3.4 x 2.3 x 1.2 (86 x 58 x 27)
Weight ()	0.23 (0.106)

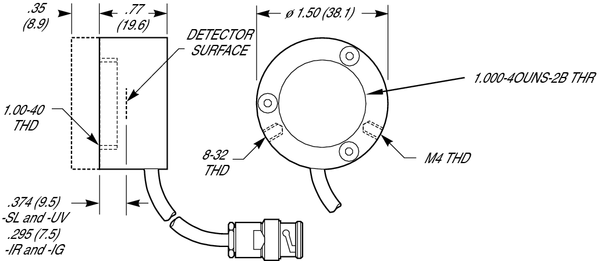

選配探頭（表1）：

818IG	InGaAs Detector, 800-1650 nm, DB15 Calibration Module
818IR	Germanium Detector, 780-1800 nm, DB15 Calibration Module
818SL	Silicon Detector, 400-1100 nm, DB15 Calibration Module
818UV	UV Detector, 200-1100nm, DB15 Calibration Module

選配探頭（表2）：

貨號	概述
918DIG1IR	探頭InGaAs Detector,光譜 800-1650 nm, OD1 Attenuator, DB15
918DIG2IR	探頭InGaAs Detector, 光譜800-1650 nm, OD2 Attenuator, DB15
918DIG3IR	探頭InGaAs Detector, 光譜800-1650 nm, OD3 Attenuator, DB15
918DG1IR	探頭Germanium Detector, 光譜780-1800 nm, OD1 Attenuator, DB15
918DG2IR	探頭Germanium Detector, 光譜780-1800 nm, OD2 Attenuator, DB15
918DG3IR	探頭Germanium Detector, 光譜780-1800 nm, OD3 Attenuator, DB15
918DSI1VIS	探頭Silicon Detector, 光譜400-1100 nm, OD1 Attenuator, DB15 Connector
918DSI2VIS	探頭Silicon Detector, 光譜400-1100 nm, OD2 Attenuator, DB15
918DSI3VIS	探頭Silicon Detector, 400-1100 nm, OD3 Attenuator, DB15
918DUVSI3	探頭UV Silicon Detector, 200-1100 nm, OD3 Attenuator, DB15

選配探頭（表3）

貨號	參數描述
818IR	探頭818 Ge Metal Wand Detector, 光譜780-1800 nm,OD3 Attenuator, 接口DB15
818UVSI	探頭818 UV Metal Wand Detector, UV-Silicon,光譜 200-1100 nm, OD3, 接口DB15
818SI	探頭818 Si Metal Wand Detector, 光譜400-1100 nm, OD3 Attenuator, 接口DB15
918DIR	探頭Wand Style Germanium Photodetector, 光譜780-1800 nm, OD3 Attenuator,接口 DB15
918DIR	探頭Wand Style Silicon Photodetector, 光譜400-1100 nm, OD3 Attenuator,接口 DB15
918DUVSI	探頭918D UV-Si Wand Detector, 光譜200-1100 nm, OD3 Attenuator, 接口DB15

選配探頭（表4）：

貨號	描述
819DIR2	積分探頭Integrating sphere detector, diverging beam, 尺寸2", 910-1650 nm
819DIR3.3	積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm
819DIR5.3	積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm
819DIR3.3	積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm
819DIR3.3	積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm
819DIR3.3	積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm
819DIR3.3	積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm
819DIR3.3	積分探頭Integrating sphere detector, diverging beam, 尺寸3.3", 光譜910-1650 nm

選配探頭（表5）：

貨號	描述
819CIR2	Integrating sphere detector, collimated beam, 2", 800-1650 nm
819CIR3.3	Integrating sphere detector, collimated beam, 3.3", 910-1650 nm
819CIR5.3	Integrating sphere detector, collimated beam, 5.3" sphere , 860-1650 nm
819CIR2N	Integrating sphere detector, collimated beam, 2", 400-1100 nm
819CIR3.3N	Integrating sphere detector, collimated beam, 3.3", 400-1100 nm
819CIR5.3N	Integrating sphere detector, collimated beam, 5.3", 400-1100 nm
819CUVVIS2	Integrating sphere detector, collimated beam, 2", 200-1100 nm
819CUVVIS5.3	Integrating sphere detector, collimated beam, 5.3", 220-1100 nm
